The Sikorsky S-61 helicopter stands out as one of the most enduring and reliable heavy-lift helicopters in aviation history. Originally developed in the late 1950s, this twin-engine, medium-lift aircraft was designed to meet both military and civilian operational demands.
Today, the Sikorsky S-61 helicopter is widely used across industries for tasks such as HVAC and rooftop unit (RTU) lifts, utility work, construction support, and aerial firefighting. Its rugged design, substantial lift capacity, and operational versatility make it an essential asset in commercial helicopter fleets worldwide.
Historical Overview

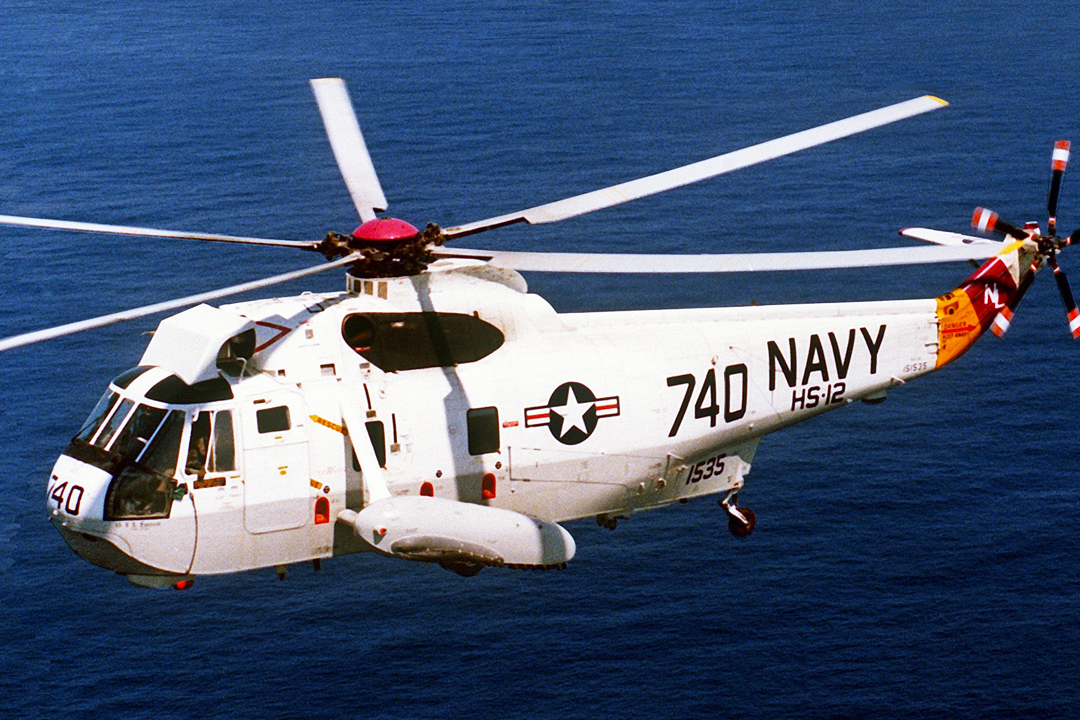

SH-3 Sea King | Photo: By US Navy – commons file, Public Domain
First flown in 1959, the Sikorsky S-61 was based on the SH-3 Sea King design. While the SH-3 was geared toward naval anti-submarine warfare, the civilian S-61 variants were engineered for commercial use, including passenger transport, offshore oil support, and external load operations. Over the decades, the helicopter evolved through multiple configurations—S-61N for passenger service, S-61L for land operations, and upgraded utility variants for heavy-lift applications.
The design featured innovations like amphibious landing gear, a watertight hull, and a high-mounted tail rotor to support safe marine operations. Many S-61s in use today have been upgraded with modern avionics, composite rotor blades, and performance enhancements to extend their service life and improve safety and efficiency.
Heavy-Lift Capabilities

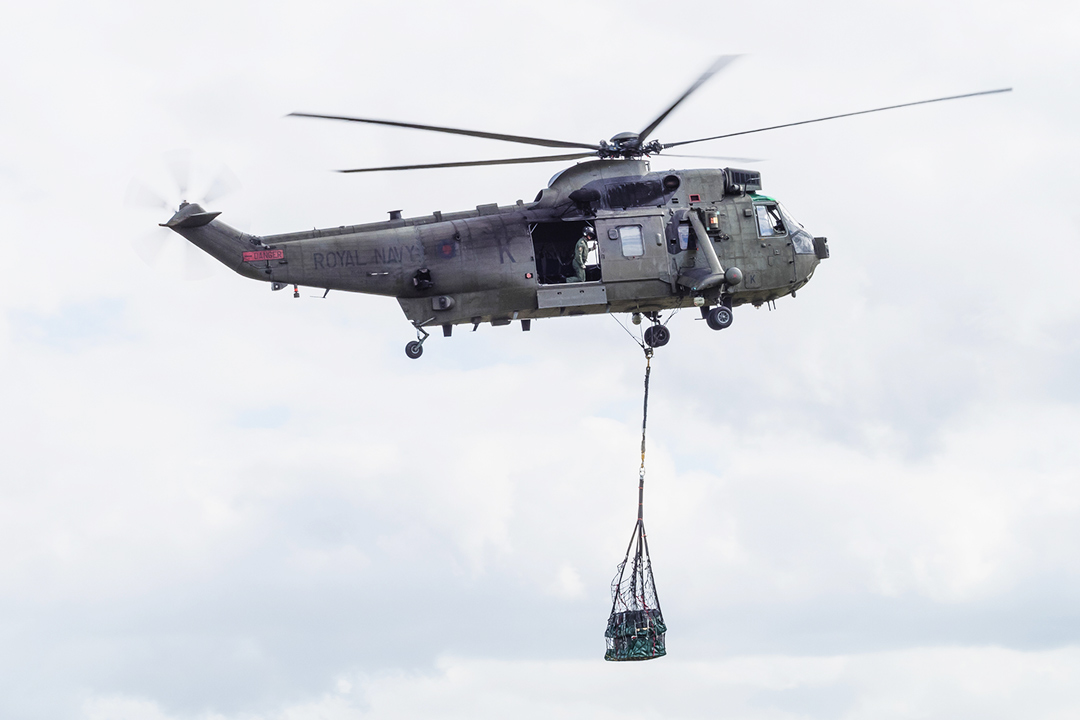

Sikorsky S-61 | Photo: Andy_Oxley
One of the most notable aspects of the S-61 is its ability to perform external lift operations with impressive payload capacities. Depending on the configuration, the helicopter can lift up to 10,000 lbs (4,540 kg) externally. Internally, the S-61 can carry up to 30 passengers or 5,000 pounds (2,268 kg) of cargo.
This performance is powered by two General Electric CT58-140 turboshaft engines, each producing around 1,500 shaft horsepower. Combined with a robust transmission system and five-bladed main rotor, the S-61 delivers reliable vertical lift, even in challenging conditions such as high altitudes or hot temperatures.
Ideal for HVAC and RTU Lifts
The S-61’s proven lift capacity and stability make it particularly well-suited for HVAC/RTU lifts. These types of jobs often involve precise placement of heavy rooftop units on commercial or industrial buildings—frequently in locations that are difficult to reach with cranes or other ground-based equipment.
Using a helicopter like the S-61 for HVAC installations offers several advantages:
- Time efficiency: Helicopter lifts can complete in hours what would take ground crews days.
- Minimal disruption: Sites remain operational with fewer road closures or construction impacts.
- High precision: Skilled pilots can maneuver heavy HVAC units into tight rooftop spaces with inch-level accuracy.
Fair Lifts and other aerial service providers often deploy the S-61 for projects requiring long-reach lifts, delicate positioning, or operations in congested urban zones where cranes are impractical.
Technical Specifications
A heavy-lift workhorse, the Sikorsky S-61 | Photo: Philip_Willcocks
| Specification | Details |
|---|---|
| Manufacturer | Sikorsky Aircraft Corporation |
| First Flight | March 1960 |
| Engine | 2 × General Electric CT58-140 turboshafts |
| Max Takeoff Weight | 20,500 lbs (9,300 kg) |
| External Lift Capacity | 10,000 lbs (4,540 kg) |
| Cruise Speed | 130 mph (210 km/h) |
| Range | 450 miles (724 km) |
| Rotor Diameter | 62 ft (18.9 m) |
Modern Upgrades and Fleet Use
While no longer produced new, many S-61 helicopters remain in active service thanks to ongoing modernization programs. Companies like Carson Helicopters and VIH Aviation Group have introduced airframe upgrades, improved transmission systems, and advanced composite rotor blades to boost performance and extend the aircraft’s operational lifespan.
S-61 Air Rescue Demonstration | Photo: trenchcoates
These upgrades make the S-61 competitive with more modern platforms in terms of payload, safety, and operational cost—especially for specialized vertical lift missions. It continues to be trusted for aerial firefighting, utility construction, logging, and disaster response roles worldwide.
Contact Us for Heavy-Lift Support
If your project requires a powerful helicopter for HVAC lifts, construction logistics, or utility transport, the Sikorsky S-61 is an ideal solution. Contact Fair Lifts today to learn how we can tailor aerial lift services to your exact requirements and ensure a smooth, efficient, and professional outcome.
